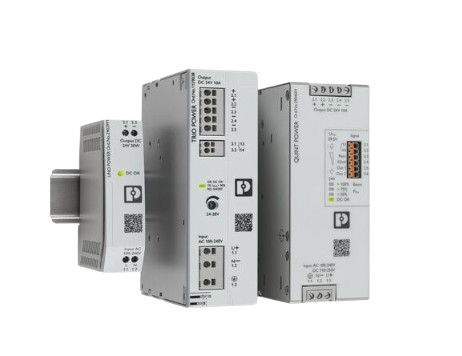

POWER SUPPLY
Supply your application reliably with our power supplies. Choose the ideal power supply that meets your needs from our wide range of different product families. The DIN rail power supply units differ with regard to their design, power, and functionality. They have been optimally tailored to the requirements of various industries, including the automotive industry, machine building, process technology, and shipbuilding.

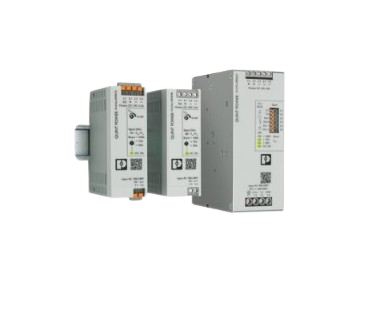

QUINT POWER – Maximum Functionality
The powerful QUINT POWER power supplies with maximum functionality provide superior system availability thanks to SFB Technology and individual configuration of signaling thresholds and characteristic curves. QUINT POWER power supplies below 100 W feature the unique combination of preventive function monitoring and powerful power reserve in a compact size.
- AC or DC input: 1-phase, 3-phase
- DC output: power up to 1000 W
- Voltages: 5, 12, 24, 48, 110, 125 V DC

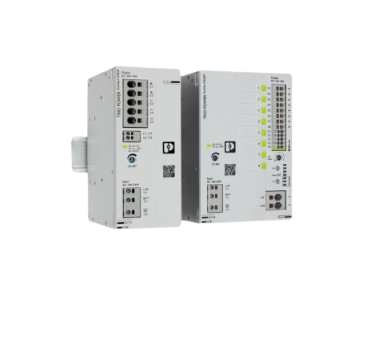

TRIO POWER – Robust With Standard Functionality
TRIO POWER power supplies feature a compact design, easy handling, and smart diagnostic functions. An optionally integrated circuit breaker makes TRIO POWER an all-rounder for machine building and systems manufacturing and ensures superior system availability.
- AC input: 1-phase, 3-phase
- DC output: power up to 1,000 W
- Voltages: 12, 24, 48, 72 V DC
- Integrated device protection: four and eight channels

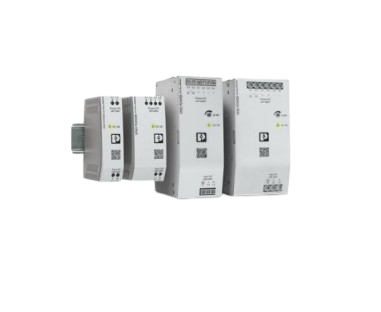

UNO POWER – Compact With Basic Functionality
Thanks to their high power density, the UNO POWER power supplies with basic functionality are ideal for use in compact control cabinets. With low no-load losses and high levels of efficiency, the efficient technology in the compact housing covers loads from 25 W to 480 W. Together, the 18 devices in the range cover output voltages from 5 to 48 V DC and are available in six designs.
- AC input: 1-phase
- DC output: power up to 960 W
- Voltages: 5, 12, 15, 24, 48 V DC

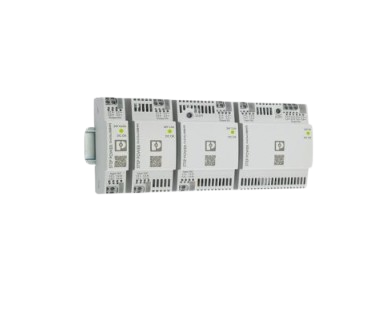

STEP POWER – For Building Automation
The STEP POWER power supplies are ideal for building automation in industrial and residential applications. With their low no-load losses and high degree of efficiency, they achieve maximum energy efficiency in distributed applications.
- AC or DC input: 1-phase
- DC output: power up to 120 W
- Voltages: 5, 12, 15, 24, 48 V DC

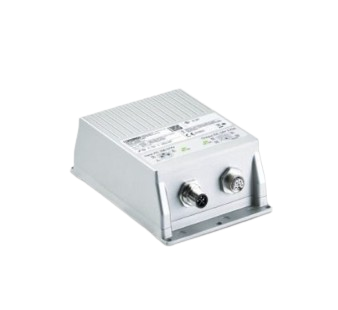

IP67 POWER - for distributed supply in the field
The robust power supplies with IP67 degree of protection are ideal for installation in the field directly at the load.
- AC or DC input: 1-phase, 3-phase
- DC output: power up to 480 W
- Voltages: 24 V DC

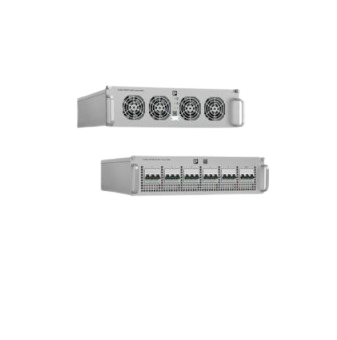

CHARX power – for e-mobility charging infrastructure
The scalable CHARX power DC power electronics enable the cost-effective supply of your DC charging infrastructure for the fast charging of electric vehicles. We offer individual charging modules for direct installation in the charging station as well as entire system cabinets for supplying charging parks in the megawatt range.
